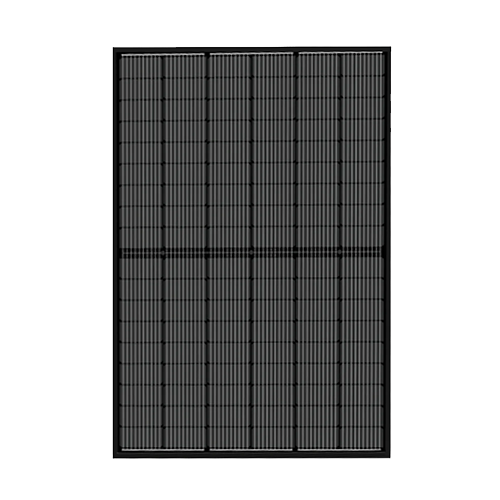

ZNShine Solar ZXM7-SH108-410 Solar Panel Overview

The ZNShine Solar ZXM7-SH108-410 is a highly efficient black-on-black solar panel designed for maximum power generation and aesthetic appeal. With a power output of 410 W, this module is perfect for residential and commercial installations. Built with advanced mono PERC technology, it delivers excellent performance even in low-light conditions.

Product Features

High Efficiency

The ZNShine Solar ZXM7-SH108-410 offers an impressive module efficiency of 20.9%, ensuring maximum energy output in limited space.

Durable Construction

Designed with a black anodized aluminum alloy frame and tempered glass, this panel is built to withstand harsh weather conditions, including heavy snow and wind loads.

Enhanced Performance

With advanced mono PERC technology and anti-reflective coating, the Znshine Solar ZXM7-SH108-410 ensures excellent performance even in low-light environments.

Aesthetic Design

The black-on-black design provides a sleek, modern look, making it an ideal choice for homes and businesses where appearance matters.

Reliable Warranty

Backed by a 25-year performance warranty and a 12-year product warranty, the Znshine Solar ZXM7-SH108-410 ensures peace of mind for long-term use.

How It Works

Mono PERC Technology

The panel utilizes mono PERC (Passivated Emitter and Rear Cell) technology, which increases light capture and reduces energy loss for improved efficiency.

Optimized Cell Design

Its 108 half-cut cells minimize power loss due to shading, delivering consistent performance under various conditions.

Advanced Protection Features

Equipped with an IP68-rated junction box, this module offers superior protection against dust and water, ensuring reliability in diverse environments.

Specifications

Specification	Details
Model Number	ZXM7-SH108-410
Nominal Max. Power (Pmax)	410 W
Module Efficiency	20.9%
Open Circuit Voltage (Voc)	49.1 V
Short Circuit Current (Isc)	10.59 A
Operating Voltage (Vmp)	40.8 V
Operating Current (Imp)	10.05 A
Dimensions	1722 × 1134 × 35 mm
Weight	20.5 kg
Cell Type	Mono PERC
Number of Cells	108
Frame	Black Anodized Aluminum Alloy
Glass	High-Transmittance Tempered Glass
Junction Box	IP68 Rated
Warranty	25 Years (Performance), 12 Years (Product)

Certifications

The ZXM7-SH108-410 solar panel complies with IEC61215 and IEC61730 standards, ensuring reliability and performance under various conditions.

Additional Notes

• Ideal for residential and commercial applications.
• Compatible with most standard inverters.
• Designed for high energy yield with minimal maintenance.
