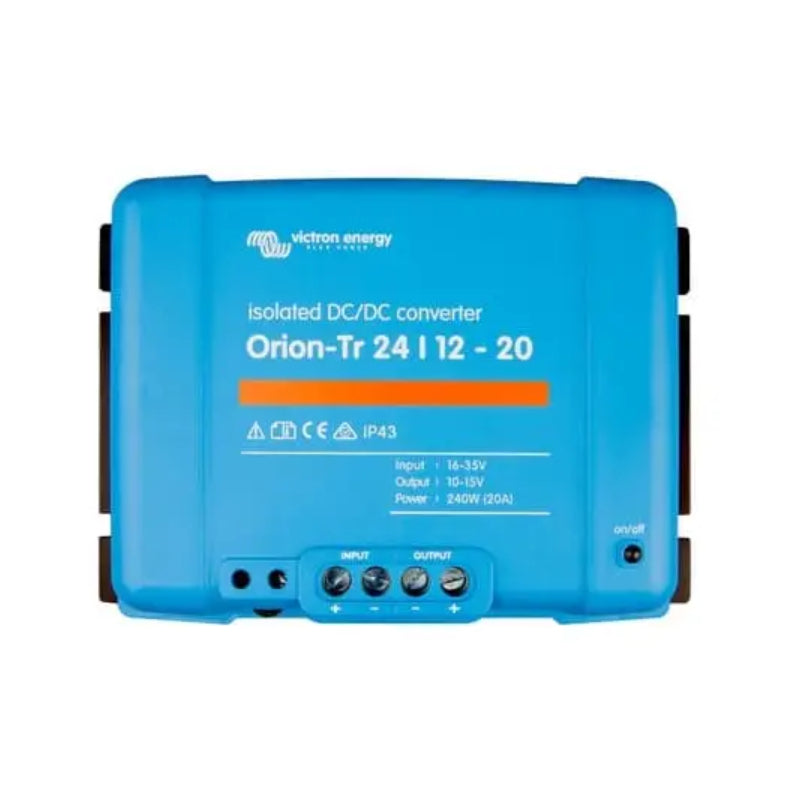

Victron Energy ORI241224110

The Victron Orion-Tr 24/12-20A DC-DC converter is a high-quality, isolated power supply designed to efficiently convert 24V to 12V voltage. Targeting users who need reliable and flexible power solutions, this converter boasts great features, making it ideal for automotive applications, remote operations, and floating battery charging. With its robust design, it ensures safe and consistent power delivery, effectively supporting various devices that operate on 12V voltage.

Product Features

Isolated Output

The isolated nature of the Victron Orion-Tr DC-DC converter enhances safety by providing galvanic separation between input and output, which reduces the risk of electrical interference and ensures secure operations in sensitive setups.

Adjustable Output Voltage

This converter allows users to precisely tailor the output voltage between 10-15V, catering to different device voltage requirements. Adjustments can easily be made using the built-in potentiometer, providing flexibility for various applications.

Short Circuit Protection

Engineered with built-in short circuit protection, this device guarantees safety by automatically shutting down if there is an overload. This feature enhances reliability, allowing users to connect devices with confidence.

High Ambient Temperature Operation

The Orion-Tr DC-DC converter is designed to handle high temperatures safely. The output current will intelligently reduce at elevated ambient temperatures, preventing overheating and ensuring stable operation in challenging environments.

Remote On/Off Functionality

Users can conveniently control the converter remotely using low-power switches. This feature eliminates the need for high-current switches in input wiring, enhancing ease of installation and operation.

How It Works

The Victron Orion-Tr 24/12-20A DC-DC converter transforms voltage by using advanced electronics that regulate the input power and convert it to the necessary output voltage. This process involves several components working together seamlessly to ensure efficiency and reliability.

Input Connections

The input connections of the converter accept 24V input from various sources, making it versatile for different applications. Proper wiring ensures optimal performance and safety.

Output Regulation

The output regulation mechanism allows for precise control of the voltage, ensuring that connected devices receive the correct power levels as per their operational requirements. This capability is critical in extending the life of sensitive electronics.

Overload Management

With advanced overload management, this converter automatically reduces output or shuts down in case of an excess load scenario. This ensures that both the devices being powered and the converter itself are protected from potential damage due to overload.

Specifications
