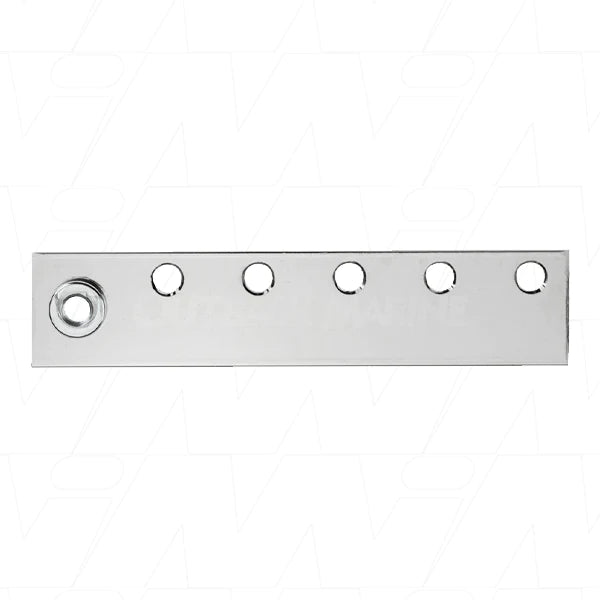

Victron Busbar to connect 5 CIP100200100 (500 A) – CIP100400060

MPN Number:

CIP100400060

SKU: PES-PA-ELC-0526 Category: Tag:

Victron Energy CIP100400060

The Victron Energy Busbar, model CIP100400060, is designed specifically for seamless connectivity of multiple high-amp fuse holders, facilitating efficient power distribution in high-demand applications. This robust solution supports a maximum input current of 2000 A, making it ideal for powering multiple Quattro or Multi inverter/chargers. With its innovative dovetail feature, users can easily interlock several fuse holders, significantly enhancing system organization and safety.

Product Features

Dovetail Interlocking System

The dovetail interlocking design of the fuse holder allows for convenient assembly and arrangement of multiple units, ensuring a clean and efficient installation. This feature enhances organization and simplifies the setup process for users.

Five Position High Current Busbar

This busbar is engineered to handle an impressive input current of up to 500 A and features a single M10 input connection. It’s an excellent choice for applications requiring compact and reliable power distribution.

Six Position High Current Busbar

With the capability to manage an input current up to 2000 A via two M10 connections, this busbar is perfect for applications needing high power. It supports multiple high-capacity inverter/chargers, ensuring optimal performance and reliability.

Versatile Fuse Holder Options

The Victron Energy Busbar offers options for single fuse holders, both with and without caps. This flexibility allows users to customize their setups based on the specific requirements of their projects.

Copper Construction

Constructed with durable copper material measuring 40 x 5 mm, both the five-position and six-position busbars ensure superior conductivity and heat dissipation, contributing to overall system efficiency.

How It Works

The Victron Energy Busbar functions as a central connection point for high-current applications, facilitating power distribution among various components. By utilizing innovative design features, it enhances electrical reliability while simplifying the installation process.

Connection Interface

The busbar offers a straightforward connection interface with M10 input connections, allowing for quick and secure installations that maximize the power supply efficiency.

High Current Handling

Its unique design enables it to handle substantial current loads, ensuring that all connected devices, such as inverter/chargers, receive adequate power without risk of overheating or failure.

Modular Design

The modular design encourages users to expand their systems seamlessly by interlocking additional fuse holders as needed, accommodating future power requirements effortlessly.

Specifications

Product Title Victron Energy Busbar CIP100400060
Manufacturer Victron Energy
Input Current for Five Position 500 A
Input Current for Six Position 2000 A
M10 Input Connections Single for 500 A, Dual for 2000 A
Busbar Material Copper
Busbar Dimensions 40 x 5 mm
Compatibility Multi and Quattro inverter/chargers
Dovetail Feature Interlocking Fuse Holders
MPN CIP100400060
