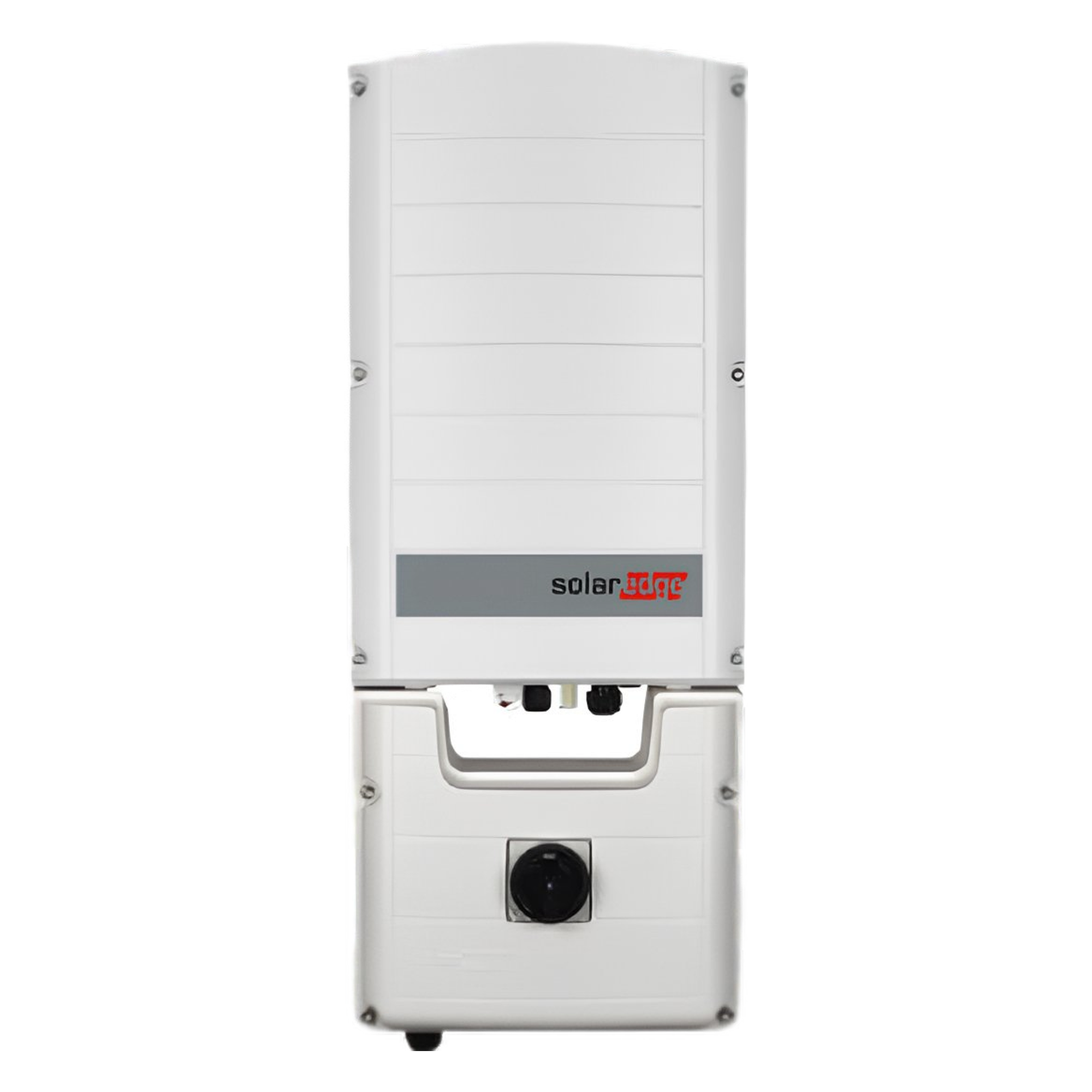

SolarEdge 20kW 480VDC 3-Phase SetAPP Inverter w/ AC RSD DC Safety Switch & AFCI – SE20K-USR8TBNU4
Note: Production has Discontinued
MPN Number:
SE20K-USR8TBNU4
DESCRIPTION
DOCUMENTS
DESCRIPTION
SolarEdge 20kW 480V 3-Phase Inverter with Safety Features
The SolarEdge SE20K-USR8TBNU4 is designed for North American solar systems, providing high efficiency and reliable performance. Equipped with advanced safety features like rapid shutdown and arc fault protection, it ensures compliance with NEC standards. This inverter is compact, easy to install, and features built-in module-level monitoring for optimal energy management.Product Features
Integrated Safety Features
Incorporates rapid shutdown and arc fault protection, which enhances safety by complying with NEC 2014 and 2017 requirements, ensuring maximum protection for your solar system.High Efficiency Performance
Achieves superior energy conversion efficiency up to 98.5%, maximizing the power output from your solar energy system and enhancing overall system performance.Easy Installation
Lightweight and compact design facilitates straightforward installation, suitable for both indoor and outdoor settings with provided brackets, simplifying setup and reducing labor costs.Advanced Monitoring System
Features built-in module-level monitoring via Ethernet or optional GSM connectivity, enabling real-time data analysis and remote access for improved energy management.Seamless Integration
Specifically designed to work effectively with power optimizers, this inverter ensures seamless integration into existing solar panel systems, enhancing overall system efficiency and performance.How It Works
The SolarEdge SE20K-USR8TBNU4 inverter operates by converting the DC power from solar panels into AC power suitable for grid supply, utilizing advanced safety and monitoring technologies to manage and optimize energy use effectively.Power Conversion Technology
Utilizes fixed voltage inverter technology to maintain optimal power levels in varied conditions, ensuring stable and efficient energy supply to the grid.Safety and Compliance Components
Integrated with features such as arc fault protection and rapid shutdown to comply with electrical standards, ensuring safety and reliability of the solar energy system.Smart Energy Management
Supports advanced energy management capabilities, including export limitation and smart monitoring to maximize energy use efficiency and reduce energy costs.Specifications
| Manufacturer | SolarEdge |
| Model Number | SE20K-USR8TBNU4 |
| Rated AC Power Output | 20000 VA |
| Maximum AC Power Output | 20000 VA |
| AC Frequency Min-Nom-Max | 59.3 – 60 – 60.5 Hz |
| Maximum DC Power | 27000 W |
| Maximum Input Voltage DC+ to DC- | 1000 Vdc |
| CEC Weighted Efficiency | 98% |
| Cooling | Fans (user replaceable) |
| Operating Temperature Range | -40 to +140 ËšF |
