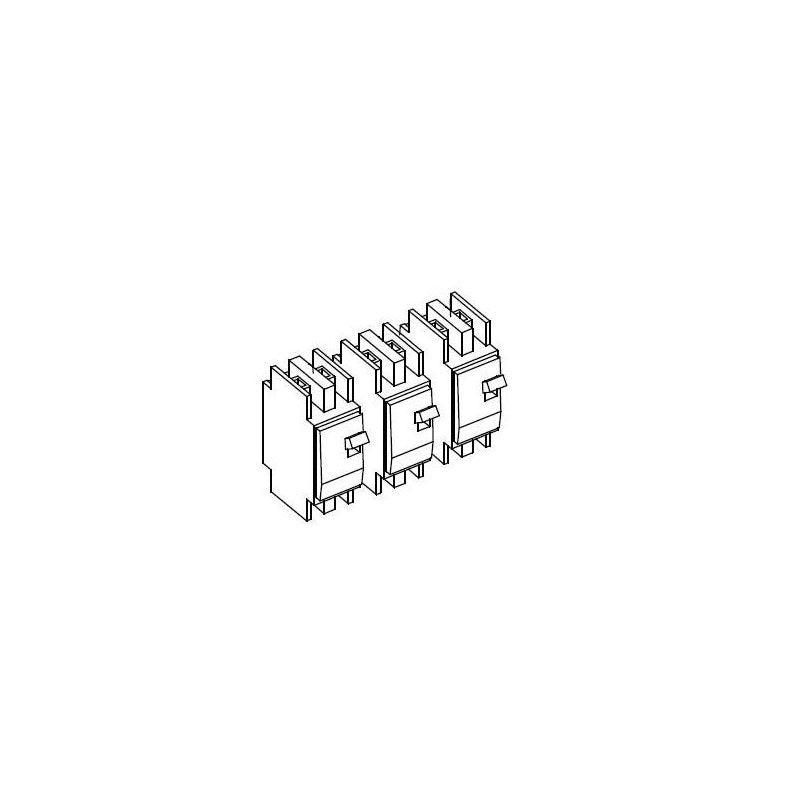

Schneider Conext 120/240 Breaker Kit (3) sets – RNW865121501

MPN Number:

RNW865121501

SKU: PES-PA-ELC-0807 Categories: , Tag:

Schneider Conext 120/240 Breaker Kit for Parallel Inverter/Chargers

The Schneider Electric RNW865121501 is an essential breaker kit designed for efficient parallel operation of Conext XW+ Inverter/Chargers. This kit enables reliable management of AC and DC power systems while ensuring safety and compliance with electrical codes. With a robust 60 Amp capacity, this breaker kit seamlessly connects to utility grids and enhances the overall performance of your inverter/charger setup.

Product Features

High Capacity Breakers

This breaker kit includes two 2-pole, 60 Amp breakers that ensure reliable operation within a 120/240 VAC system, providing peace of mind and safety during electrical usage.

Versatile Configuration

The RNW865121501 supports connecting additional Conext inverter/chargers, allowing users to expand their systems as needed. This flexibility enhances usability and provides options for varying power needs.

Safety Compliance

Designed with user safety in mind, this kit adheres to national electrical codes and includes features like a bypass interlock plate, minimizing risks during installation or maintenance.

Durable and Reliable Components

The components of the Schneider Electric RNW865121501 are built to last, ensuring longevity and performance in demanding environments. Their high-quality construction reduces the need for frequent replacements.

Easy Installation

The inclusion of labeled components and clear installation guidelines makes setup straightforward. This helps users operate their inverter/charger systems with confidence, even without extensive technical knowledge.

How It Works

The RNW865121501 operates by interlinking with compatible Conext Inverter/Chargers to distribute AC and DC loads efficiently. It facilitates proper circuit connections, ensuring that all electrical systems function harmoniously.

Breaker Integration

The integrated breakers provide necessary protection against overloads and electrical faults within the system, enhancing reliability and safety during operation.

Interlock Plate Functionality

The bypass interlock plate prevents accidental operation of breakers, ensuring the system remains in a safe state during maintenance or any adjustments needed by the user.

Grid and Load Distribution

This breaker kit facilitates seamless distribution of electric loads when connected to grid systems. It effectively manages power flows between the inverter/charger and AC loads, ensuring efficiency.

Specifications

Manufacturer Schneider Electric
Part Number RNW865121501
Breaker Type 2-Pole, 60 Amp
Voltage Rating 120/240 VAC
Installation Type Parallel Inverter/Chargers
Product Weight Varies
Dimensions Varies
Compliance National Electrical Code Compliant
Color Black
Warranty Varies by installation
