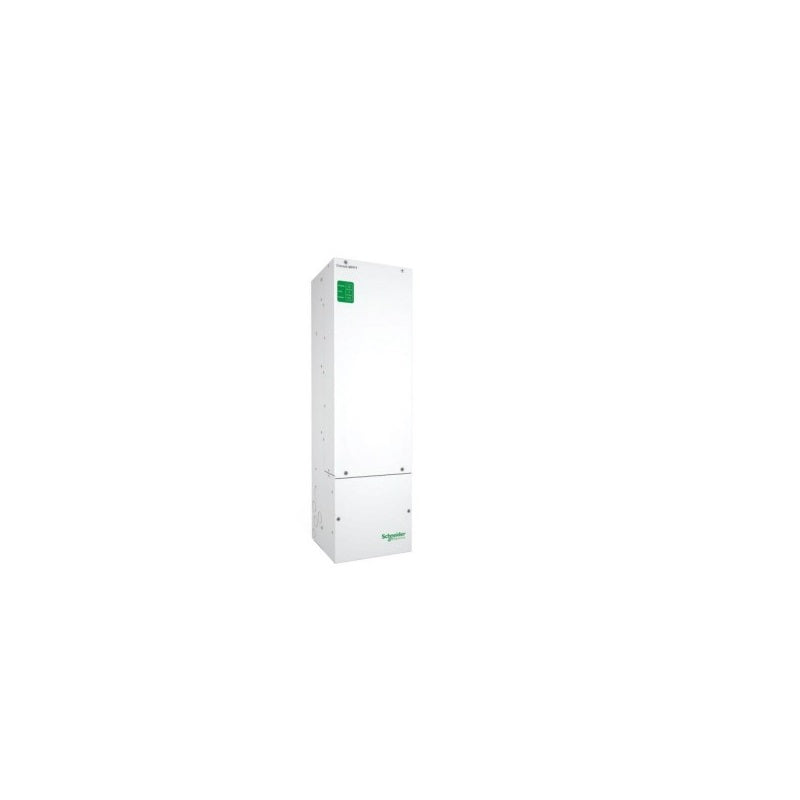

Schneider Conext XW-MPPT100-600 Solar Charge Controller

The Schneider Electric RNW8651034 is a robust solar charge controller designed to optimize solar power for DC-coupled solar and storage systems. This advanced controller provides maximum energy efficiency with its high-power 600 Vdc MPPT system, ensuring optimal battery charge regulation. It’s ideal for both grid-tied and off-grid applications, offering enhanced energy resilience and easy integration with Insight Energy Management for remote monitoring and control.

Product Features

High Power Output

Experience substantial energy storage with the 600 Vdc MPPT PV optimization capability, facilitating battery charge control. The system handles oversized PV array power ratings, delivering high efficiency from PV to battery to grid.

Flexibility and Compatibility

Enjoy flexible string sizing with a wide MPPT and PV operating voltage range. This charge controller is compatible with XW Pro and SW series hybrid inverters, providing a comprehensive solar and storage solution.

Effortless Installation

The system supports two-string installations and smaller wire sizing with 600 Vdc PV arrays, allowing for faster and cost-effective installations without needing a combiner box with DC breakers or fuses.

Insight Energy Management

This controller integrates seamlessly with Insight Energy Management, enabling setup, configuration, remote monitoring, and control via web and mobile apps with advanced data security features.

Enhanced Energy Resilience

Utilize the system’s ability to black start batteries from solar energy for prolonged grid outages, boosting energy resilience. The fast sweep MPPT algorithm aids in maximizing energy harvest, even in shaded conditions.

How It Works

This solar charge controller operates by managing the photovoltaic (PV) power generated and directing it efficiently to charge batteries. It ensures optimal power conversion and storage, supporting both seamless integration with existing systems and standalone operation.

MPPT Functionality

The Maximum Power Point Tracking (MPPT) feature ensures that the PV arrays operate at the optimum efficiency, maximizing power extraction even under varying solar conditions.

Battery Charge Control

The controller offers three-stage battery charging (bulk, absorption, float) plus manual equalization, extending battery lifespan and improving overall system reliability.

Advanced Monitoring

Live data can be monitored and managed through the Insight Energy Management platform, offering real-time performance analytics and control for multiple installations.
