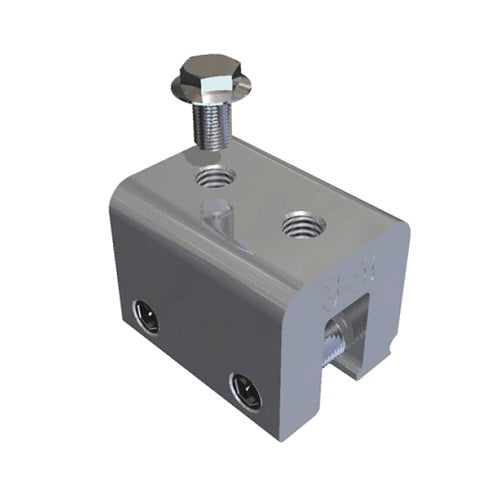

S-5! Metal Roof Clamp – S-5-V
MPN Number:
S-5-V
S-5! S-5-V
The S-5-V clamp is an outstanding solution for metal roofing applications, ensuring robust attachment without compromising the roof manufacturer’s warranty. Designed with simple yet effective mechanics, this clamp utilizes patented setscrews that dimple the metal seam instead of piercing it. This feature secures the clamp firmly while maintaining the integrity of your roof, making it a reliable choice for various metal roofing projects.
Product Features
Patented Design
The S-5-V clamp’s unique design includes patented round-point setscrews that provide excellent holding strength without damaging your roofing material. This key feature ensures the longevity and warranty protection of the roof while securely fastening the accessory items.
Versatile Compatibility
This clamp is engineered to be compatible with most common metal roofing materials, making it a versatile choice for various applications while excluding copper roofing. The S-5-V is perfect for a wide array of vertical-seam profiles prevalent in North American roofs.
Durable Construction
The S-5-V clamp is constructed from structural aluminum and features stainless steel hardware. This durable construction ensures protection against corrosion and weather elements, enhancing long-term reliability and performance.
Load Testing Certification
Independently tested for load-to-failure results, the S-5-V clamp has proven its exceptional holding strength across various brands and profiles of standing seam roofing. This certification gives users peace of mind when choosing S-5! products for load-critical designs.
Easy Installation Process
Installing the S-5-V clamp is straightforward, requiring minimal tools. With a simple process of setting the clamp on the seam and tightening the setscrews to the specified tension, users can quickly and confidently secure their installations without specialized skills.
How It Works
The operation of the S-5-V clamp is user-friendly, focusing on secure attachment to standing seam roofs. The clamp utilizes its setscrews to engage the seam, providing stable support for various rooftop accessories while ensuring no damage occurs to the roof material.
Key Component: Setscrew Mechanism
The patented setscrew mechanism allows the S-5-V clamp to grip the seam without penetrating it, thereby maintaining the roof’s warranty while ensuring a sturdy hold for accessory attachments.
Supporting Structure: Aluminum Base
The clamp’s structural aluminum base provides a strong yet lightweight frame, enabling versatile usage across different roof types. This base effectively disperses weight, enhancing the security of attached items.
Supplementary Hardware
Included with the S-5-V clamp are stainless steel bolts for affixing ancillary items, ensuring a secure connection that withstands the rigors of environmental conditions.
Specifications
| Product Type | Clamp |
| Material | Structural Aluminum with Stainless Steel Hardware |
| Compatibility | Most Metal Roofing Materials (Excluding Copper) |
| Installation Method | Setscrews Tightening |
| Load Testing | Certified for Various Major Brands |
| Dimensions | Standard Size for Vertical Seam Profiles |
| Warranty | Protected Under S-5!A‚® Warranty Terms |
| Operating Temperature | -40°F to 200°F (-40°C to 93°C) |
| Torque Specifications | 130′”180 inch-pounds |
| Product Weight | Lightweight Design for Easy Handling |
