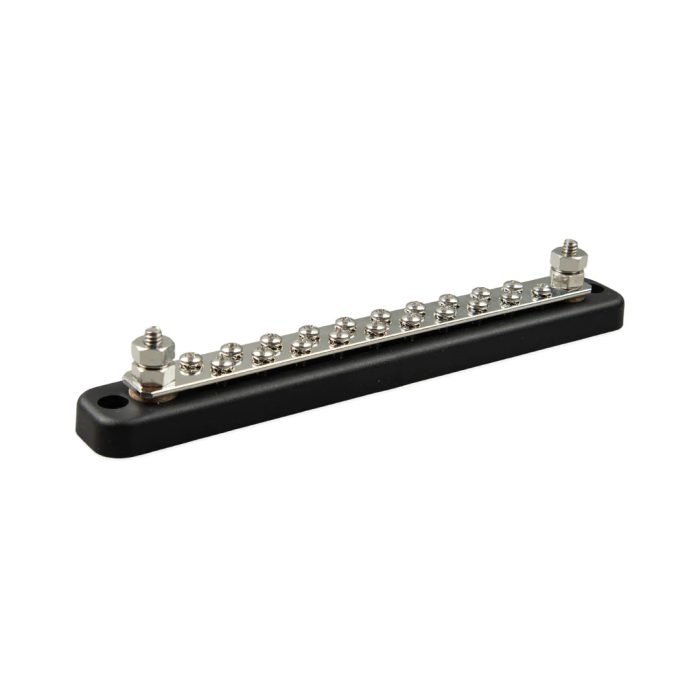

Victron Energy VBB115022020 Busbar 150A 2P with 20 Screws and Cover

The Victron Energy Busbar 150A 2P with 20 screws and cover is designed to provide a robust and reliable electrical connection for various applications. This busbar allows a maximum current of 150A and a voltage of 70VDC, making it suitable for both residential and commercial use. Its stainless steel terminals ensure durability and reliability, while the clear polycarbonate cover adds an extra layer of safety and protection.

Product Features

High Current and Voltage Capacity

The Victron Energy Busbar supports a powerful maximum current of 150A and a maximum voltage of 70VDC, which makes it ideal for demanding electrical systems. Whether you’re outfitting a large residential installation or a commercial setup, this busbar can effectively manage the electrical load.

Durable Construction Materials

This busbar features terminals made from stainless steel and a busbar strip composed of tin-plated copper. These materials ensure optimal conductivity and corrosion resistance, enhancing the product’s longevity and performance.

Versatile Terminal Options

The product provides options for either 10 or 20 screws, allowing for flexibility in installation and configuration. This adaptability ensures compatibility with various wiring setups, making it a highly versatile choice for users.

Integrated Clear Cover

Included with the busbar is a transparent polycarbonate cover, which adds a level of protection while allowing for easy visibility of the connections. This enhances safety by reducing the risk of accidental contact and ensuring that the connections are visible for inspection.

Easy Installation

With a recommended torque of 60 lbf·inch / 7 N·m for the terminal screws, the Victron Busbar is designed for straightforward installation. The clear labeling and intuitive design simplify setup and maintenance for users and electricians alike.

How It Works

The Victron Busbar operates by distributing electrical current efficiently through its multiple screws. This allows for a centralized connection point for various cables and components, which aids in organizing wiring and improving overall system efficiency.

Terminal Connections

Each terminal is designed to accept 8-32 / 4.2 mm screws, facilitating a stable and secure connection for wiring. This design reduces the risk of loose connections, enhancing the reliability of your electrical system.

Effective Current Distribution

The unique design of the busbar allows for optimal current distribution across all connected terminals. This ensures that all components receive the necessary power, preventing overloads and ensuring smooth operation.

Material Benefits

The materials used not only contribute to the busbar’s durability but also enhance its overall performance. Tin-plated copper and stainless steel work together to minimize resistance and heat generation, resulting in more efficient electrical transmission.
