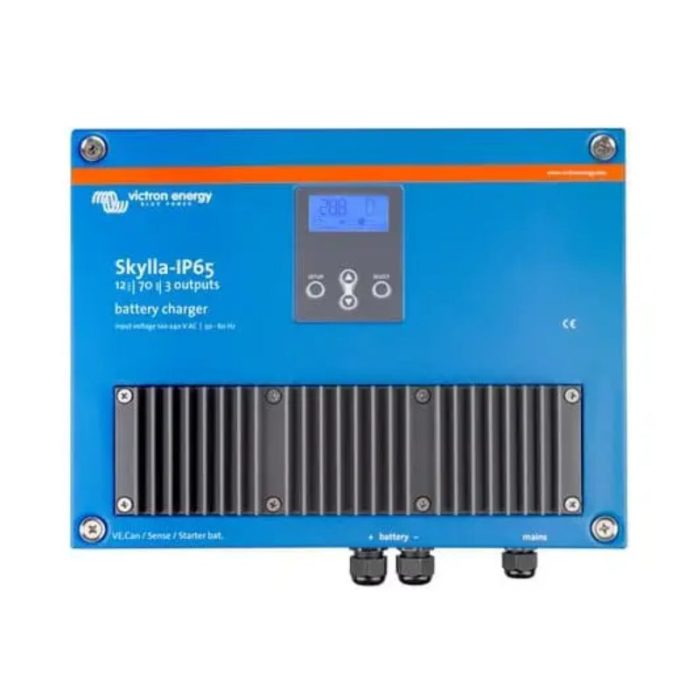

Victron Skylla IP65 12/70 (3) Battery Charger – Efficient Power Supply

The Victron Energy SKY012070100 Skylla IP65 12/70 (3) is a high-performance battery charger designed to ensure optimal charging for various battery banks. With input voltage capabilities ranging from 90 to 265 VAC and a maximum output of 70 A, this charger effectively meets the needs of both lead-acid and lithium-ion batteries. Its advanced features, including a seven-stage adaptive charge algorithm, enhance battery life, while the IP65 rating offers protection from harsh environments, making it an excellent choice for demanding applications.

Product Features

Advanced Charge Algorithm

The Skylla IP65 charger features a seven-stage adaptive charging algorithm, which ensures that your batteries receive the precise charge they need for optimal performance. This capability helps prevent overcharging and prolongs battery life, making it a smart investment for users seeking efficiency.

Multiple Output Options

This charger supports up to three battery banks with isolated outputs, allowing for simultaneous charging without interference. Users can take advantage of the full rated output current across all outputs, ensuring each battery receives the necessary charge.

Rugged IP65 Protection

The Skylla IP65’s protective case, made from steel, is coated with epoxy powder, ensuring durability against heat, humidity, and salt air. This construction significantly enhances the device’s reliability in harsh environments, making it suitable for marine and outdoor use.

Integrated Temperature Sensors

Equipped with internal temperature sensors, this charger automatically adjusts its output to prevent overheating, ensuring safe and efficient operation even under extreme conditions. This feature is crucial for maintaining longevity and performance.

Smart Control Features

The charger includes a remote on-off port for easy management and can communicate via CAN-bus. This allows for integration with other devices, providing users with better control over their charging process, which is particularly beneficial in complex setups.

How It Works

The Skylla IP65 12/70 (3) charger operates using a sophisticated control circuit that secures stable charging for a variety of battery types. It dynamically adapts the charge voltage and current based on the battery’s state and environmental conditions, ensuring optimal performance and safety.

Charging Logic

The charger utilizes intelligent algorithms to determine the most effective charge profile for the connected batteries. By automatically adjusting the charge stages, it minimizes gassing and corrosion, enhancing battery longevity.

Voltage Sensing Mechanism

A built-in voltage sensing feature compensates for voltage drops due to cable resistance, ensuring that batteries receive the correct charge voltage, regardless of their distance from the charger. This functionality contributes to a more efficient charging process.

Remote Monitoring and Control

The Skylla IP65 can be paired with Victron’s SmartShunt or BMV-712 Smart Battery Monitor for real-time monitoring and control from a smartphone or Bluetooth-enabled device. Users can customize settings and view historical data, enhancing usability.

Specifications

Datasheet
