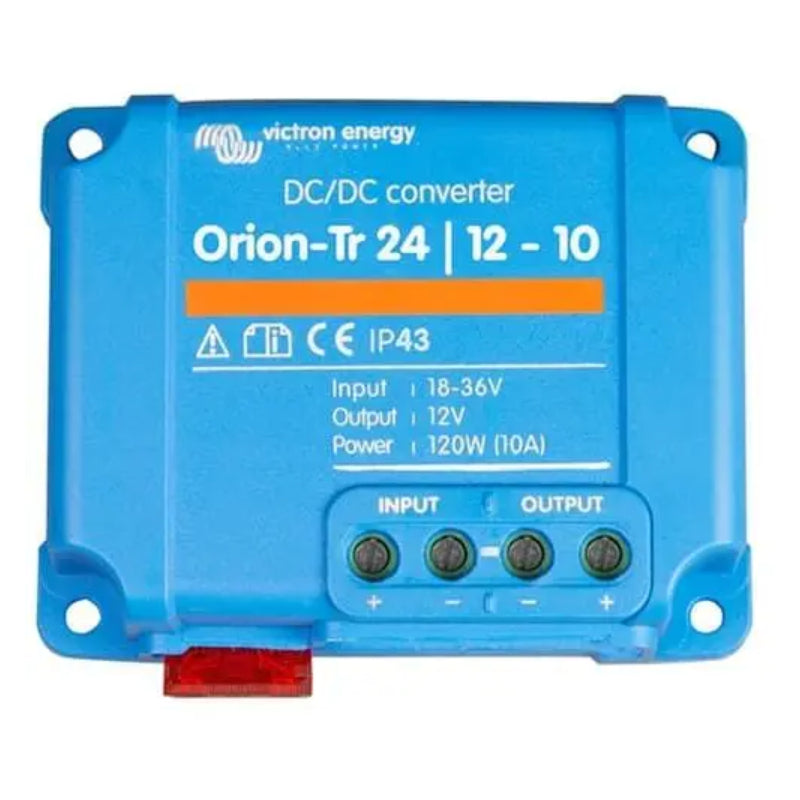

Victron Energy ORI241210200R

The Victron Orion-Tr 24/12-10 (120W) DC-DC Converter is designed to effectively convert input voltages from 18 to 35V down to a stable output of 12.5V. This non-isolated converter is an ideal solution for applications requiring high efficiency, with a performance that exceeds 97% at full load. The user-friendly design includes screw terminals for easy installation, making it a practical choice for diverse electrical setups.

Product Features

Exceptional Efficiency

This DC-DC converter stands out with an impressive efficiency of 97%, ensuring minimal energy loss during operation. With this high efficiency, users can rely on the Victron Orion-Tr 24/12-10 to perform optimally, saving energy and reducing operating costs.

Non-Isolated Design

The non-isolated construction of the Orion-Tr allows for a direct and efficient voltage conversion without the need for galvanic isolation, providing users with a dependable output while maintaining simplicity in installation.

Easy Installation

Equipped with user-friendly screw terminals, the Orion-Tr 24/12-10 requires no special tools for installation. This feature not only saves time but also ensures that electrical connections are secure and reliable.

Durable Protection Rating

This converter has an IP43 protection rating, which means it is resistant to dust and water when installed appropriately. Users can have peace of mind knowing that their equipment is protected in typical conditions.

Robust Operating Temperature

The Orion-Tr 24/12-10 is built to perform within a wide operating temperature range of -20 to +55C, making it suitable for various environments and applications. This adaptability enhances its usability for different projects.

How It Works

The Victron Orion-Tr 24/12-10 operates by utilizing synchronous rectification to efficiently convert DC voltage levels. Its design ensures that energy is optimally utilized, making it a great choice for those in need of reliable power conversion.

Synchronous Rectification

This technology plays a crucial role in the converter’s high efficiency. By ensuring that energy is directed efficiently, it minimizes heat generation and maximizes the load handling capabilities of the converter.

User-Friendly Connections

The screw terminals allow users to easily make connections, simplifying the installation process. This aspect is vital for both novice and experienced users who appreciate a straightforward assembly.

Protection and Durability

Designed with durability in mind, the IP43 rating indicates that the converter can withstand environmental challenges. This feature ensures that the device remains functional under various conditions, enhancing its longevity.
