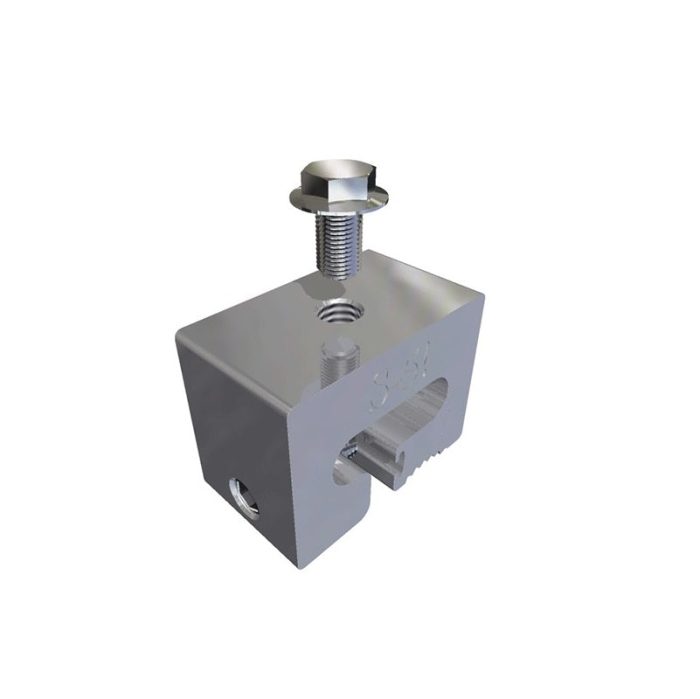

S-5! Roof Clamps – S-5-T Mini
MPN Number:
S-5-T Mini
S-5! Roof Clamps – S-5-T Mini for Versatile Metal Roof Applications
Experience superior roof attachment solutions with the S-5-T Mini clamp. The S-5! S-5-T Mini clamp is engineered for “T” shaped seam roofs, ensuring a secure hold without compromising roof warranties. Designed for adaptability and strength, it provides unmatched performance across various rooftop applications.
Product Features
Advanced Design for Seam Integrity
The S-5-T Mini applies patented setscrews that dimple the seam material gently, maintaining the roof’s integrity and leaving warranties untouched. This unique feature reinforces its suitability for long-lasting installations.
Durable and Compatible Construction
Crafted from structural aluminum, the S-5-T Mini is compatible with most metal roofing materials, excluding copper. All included hardware, such as stainless steel setscrews and bit tips, enhance durability and resistance.
Comprehensive Hardware Included
Each S-5-T Mini clamp comes with essential installation tools, ensuring ease of application. The kit includes a bit tip for electric screw guns, streamlining the setup process for efficient installation.
Extensive Load Testing Certification
Tested rigorously on a range of “T” shaped standing seam profiles, the S-5-T Mini showcases load-to-failure results that confirm its exceptional holding powerproven to be unrivaled in its class.
Versatile Applications for Added Flexibility
Perfect for use with various rooftop installations, the S-5-T Mini adapts to multiple applications, including snow retention systems and miscellaneous rooftop equipment, offering robust support for your projects.
How It Works
The S-5-T Mini clamps function efficiently to secure attachments without penetrating the roof surface. Its operation leverages precise set screw tensioning to adapt to seam compression, optimizing holding strength and dependable performance in diverse environments.
Patented Setscrew Mechanism
The setscrews feature a round-point design that delicately interfaces with roof seams, avoiding puncture while providing a reliable grip necessary for various accessories.
User-Friendly Installation Process
Installing the S-5-T Mini is straightforward: position, align, and tension the setscrew with the provided tools, achieving secure, adjustable fitting across the roof panel.
Broad Compatibility with Accessories
The S-5-T Mini supports a wide range of accessories, ensuring compatibility and versatility for your rooftop setup needs, from snow guards to solar mounts and more.
Specifications
| Material | Structural Aluminum |
| Compatible Roof Types | “T” Shaped Seam Profiles |
| Hardware Material | Stainless Steel |
| Clamp Length | 2.00″ (50.00 mm) |
| Clamp Height | 1.50″ (38.00 mm) |
| Clamp Width | 0.95″ (24.00 mm) |
| M10 Hole Location | 1/2″ (13.00 mm) from Edge |
| Minimum Setscrew Tension | 130 inch pounds |
| Maximum Setscrew Tension | 150 inch pounds |
| Tested Load Capacity | Varies by Roof Type |
