S-5! CLAMP – S-5-E Mini
MPN Number:
S-5-E Mini

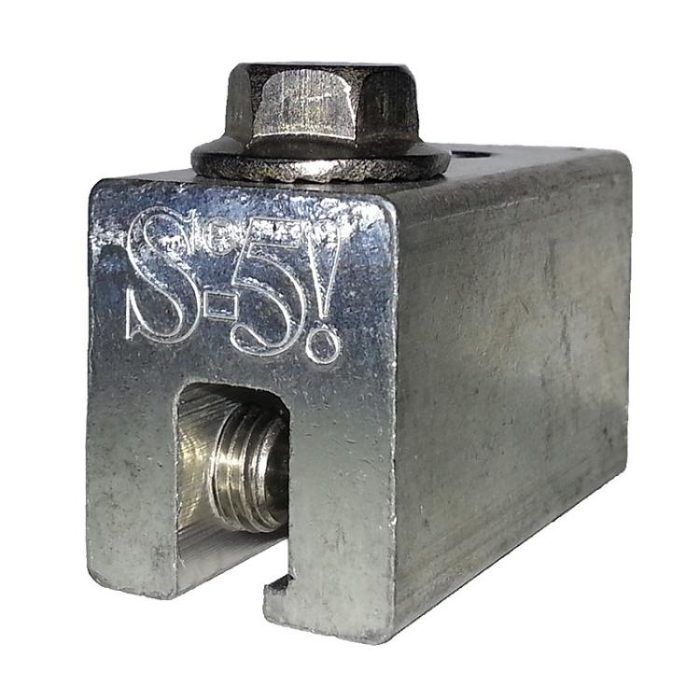

S-5! S-5-E Mini Clamp for Standing Seam Roofs
The S-5! S-5-E Mini clamp is expertly designed for attaching various accessories to double-folded standing seam metal roofs without compromising the roof warranty. This innovative clamp combines strength with simplicity, ensuring secure attachment while preserving the integrity of your roofing material. With its unique patented setscrews, the S-5-E Mini provides a reliable solution for rooftop installations, allowing you to affix items like signs, antennas, and solar arrays with ease.
Product Features
Compact and Lightweight Design
The S-5-E Mini clamp offers a compact structure that is perfect for tight spaces on rooftop metal seams. This feature enhances usability as it allows for installation in areas where larger clamps would be impractical.
High-Quality Materials
Constructed from durable structural aluminum and featuring stainless steel hardware, the S-5-E Mini clamp ensures longevity and resistance to corrosion. The robust materials used underscore the product’s reliability, making it a preferred choice for rooftop applications.
Preserves Roof Warranties
A standout feature of the S-5-E Mini is its patented round-point setscrews that secure the clamp without piercing the metal seam. This unique design helps maintain the roof’s warranty, providing peace of mind for homeowners and installers alike.
Versatile Application
This clamp is versatile enough to accommodate a wide range of accessories. From snow guards to satellite dishes, the S-5-E Mini ensures that you can attach nearly anything without damaging the surface of your metal roof.
Easy Installation Process
The S-5-E Mini clamp is incredibly user-friendly. Installation can be easily performed using an electric screw gun and the included bit tip for tightening the setscrews, making it accessible for both professionals and DIY enthusiasts.
How It Works
The S-5-E Mini operates by engaging with the metal seam through its specially designed setscrews. These screws apply pressure on the seam without causing punctures, ensuring that the integrity of the roofing material is preserved. This clamps securely holds a variety of attachments in place, making it ideal for multiple usages.
Adjustable Setscrew Mechanism
The adjustable setscrew mechanism of the S-5-E Mini allows for optimal tensioning. Users are encouraged to check tension with a calibrated torque wrench for the best holding strength, ensuring a secure fit for all applications.
Specifications Compatibility
This clamp is compatible with most common standing seam roofing materials, making it an excellent tool for various projects. However, it is important to note that it should not be used with copper materials.
Supports Heavy-Duty Application
The S-5-E Mini clamp seamlessly integrates into heavy-duty applications, ensuring reliable performance. Its tested load-to-failure strength makes it suitable for demanding installations, assuring users of its capabilities.
Specifications
| Product Name | S-5-E Mini Clamp |
| Manufacturer | S-5! |
| Material | Structural Aluminum with Stainless Steel Hardware |
| Dimensions | Varies based on installation |
| Load Capacity | Tested load-to-failure results |
| Installation Method | Electric Screw Gun, Bit Tip Included |
| Compatibility | Most Metal Roofing Materials (excluding copper) |
| Torque Specifications | 160-180 inch pounds on 22ga steel; 130-150 inch pounds on other metals |
| Warranty Preservation | Yes, maintains roof warranties |
| Usage | Attaches various rooftop accessories securely |
