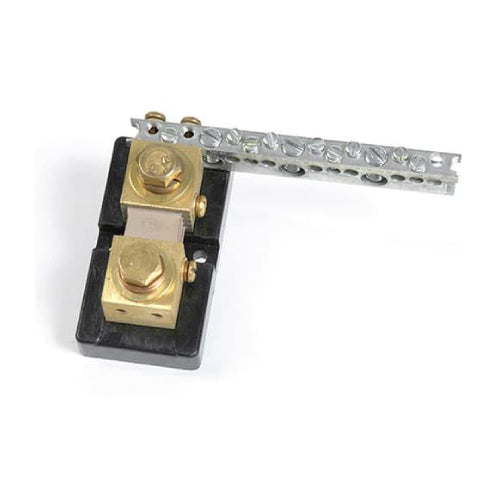

Outback Power 500A 50mV DC Current Shunt – FW-SHUNT500
MPN Number:
FW-SHUNT500
Outback Power 500A 50mV DC Current Shunt – FW-SHUNT500
The Outback Power FW-SHUNT500 is a high-performance device designed for monitoring and managing DC current in your power systems. This reliable 500A shunt provides 50mV measurement accuracy, ensuring optimal functionality for energy management solutions. Specifically engineered for Outback Power systems, it enhances the efficiency of your battery and inverter setups, making it a perfect choice for energy-conscious users.
Product Features
High Current Capacity
The Outback Power FW-SHUNT500 boasts a robust 500A rating, ideal for high-demand applications. By efficiently measuring large current flows, it supports sustainable energy usage and prolongs battery life, representing an invaluable addition to your power management tools.
Precision Voltage Measurement
With a 50mV output, this shunt enables accurate voltage readings critical for monitoring battery health and performance. It ensures that your system operates within safe parameters, reducing the risk of damage due to over-current situations.
Enhanced System Integration
This current shunt seamlessly integrates with Outback Power systems, fostering compatibility and improved performance. Using the FW-SHUNT500, you can better monitor your energy consumption and battery status, enhancing overall system efficacy.
Durable Construction
Built to withstand harsh conditions, the FW-SHUNT500 features superior materials that ensure longevity and reliability. This durability means that users can depend on consistent performance without worrying about wear or environmental damage.
Easy Installation
Installing the Outback Power FW-SHUNT500 is straightforward, allowing for quick deployment in various systems. This easy installation process means more time enjoying the benefits of reliable power management instead of tedious setup.
How It Works
The Outback Power FW-SHUNT500 functions by measuring the current flowing through it and outputting a proportional voltage drop. This voltage is then monitored by compatible devices, allowing for precise calculations of energy usage and system performance.
Connection Points
It features clearly labeled connection points for easy integration into your existing power systems, ensuring that users can quickly set it up and start monitoring.
Data Interpretation
The voltage output from the shunt can be interpreted by Outback Power’s monitoring systems, providing real-time data on current flow and overall system health. This allows for immediate adjustments to be made based on performance metrics.
Safety Features
Incorporating protective measures, this shunt ensures that the system operates safely, even during high-load conditions. This focus on safety means peace of mind for users dependent on their power systems.
Specifications
| Model | FW-SHUNT500 |
| Current Rating | 500A |
| Voltage Output | 50mV |
| Material | High-density alloy |
| Dimensions | Standard size compatible with Outback systems |
| Weight | Lightweight for easy installation |
| Operating Temperature Range | -20C to 60C |
| Installation Type | Surface mount |
| Safety Ratings | UL listed |
| Warranty | 5 years |
