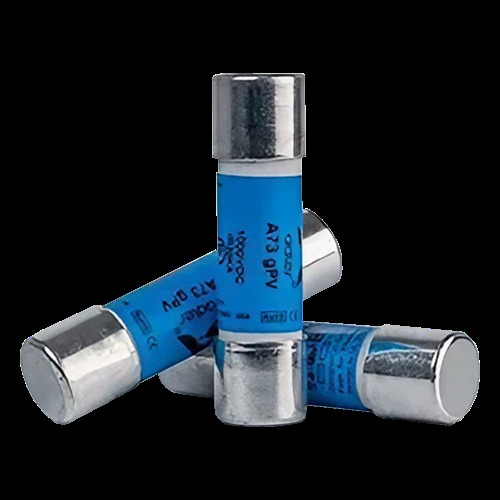

MidNite Solar MN1000FUSE-30

The Midnite Solar MN1000FUSE-30 is an exceptional photovoltaic fuse link designed for high-power applications, ensuring utmost safety and reliability. With a voltage rating of 1000 VDC and a variety of current ratings from 1 to 30 A, this fuse link is engineered specifically for solar energy systems. Its robust design enhances performance while meeting industry standards, making it a vital component for any solar power setup.

Product Features

High Voltage Rating

This fuse link supports a substantial voltage of 1000 VDC, making the Midnite Solar MN1000FUSE-30 ideal for high-power photovoltaic applications. This feature ensures that the fuse can handle demanding operations without compromising safety or functionality.

Rated Current Variability

With a range of rated currents available from 1 A to 30 A, users can select the most suitable version for their specific requirements. This versatility provides flexibility in application, enhancing the usability of the fuse link across different systems.

Robust Breaking Capacity

The breaking capacity of 30 kA at 1000 VDC ensures optimal disruption of current flow in the event of a fault, protecting the circuit and connected devices. This feature significantly contributes to the overall safety of solar energy systems.

Fast Response Time

Equipped with a time constant of just 1-3 ms, the Midnite Solar MN1000FUSE-30 responds rapidly to overcurrent conditions, minimizing the risk of damage to sensitive equipment. This quick reaction is crucial in protecting electrical components during fault conditions.

PVC Approved Design

Constructed with silver plated caps, this fuse link is specifically designed to enhance performance in high-power photovoltaic applications. Its compliance with UL standards further indicates its reliability and safety, making it market-ready for various installations.

How It Works

The Midnite Solar MN1000FUSE-30 operates by interrupting the flow of electricity in the event of an overload or short circuit. It comprises various components that work together to safeguard solar energy systems and connected devices from excess current.

Fuse Element

The fuse element melts under excessive current conditions, effectively breaking the circuit and preventing further damage. This crucial function is vital in ensuring user safety and protecting the integrity of the solar installation.

Insulation Material

High-grade insulation materials encase the fuse element, ensuring maximum protection against the elements and maintaining operational integrity under high temperatures. This contributes to the overall longevity and reliability of the fuse link.

Mounting Options

Compatible with BH100-01 and BH100-02 holders for DIN rail mounting, this fuse link provides easy installation options. This adaptability simplifies integration into various solar setups, enhancing usability for installers and end-users alike.
