Chint 100kW 3Phase String Inverter Centralized WB, 1500VDC, 1 MPPT-480Vac – SCH100KTL-DO/US-480
$7,956.00
MPN Number:
SCH100KTL-DO/US-480-C

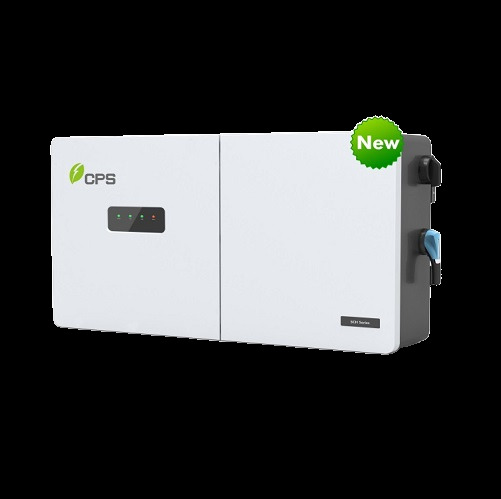

Chint 100kW 3-Phase String Inverter with Centralized WB
Discover the Chint Power SCH100KTL-DO/US-480-C, a robust inverter designed for North American grid environments. This 100kW inverter brings high efficiency and advanced smart-grid features, seamlessly supporting 480 Vac ground-mount applications. Equipped with a durable NEMA Type 4X enclosure, it’s built to withstand extreme conditions while ensuring top-notch performance.
Product Features
Efficient Power Conversion
This inverter provides excellent power conversion with a maximum efficiency of 98.9%, ensuring that you get the most out of your power systems with the Chint Power SCH100KTL-DO/US-480-C.
Advanced Smart-Grid Compatibility
The device incorporates advanced smart-grid features including Volt-RideThru, Ramp-Rate, and more, optimizing operation and compliance with standards like CA Rule 21.
Flexible Configuration Options
With one MPPT and 20 fused inputs available, this inverter allows for maximum configuration flexibility to best suit your energy needs.
Durable and Weather Resistant
Featuring a NEMA Type 4X enclosure, this inverter is tested to endure harsh environmental conditions, making it ideal for outdoor installations.
Reliable Safety Features
Includes touch-safe DC fuse holders and integrated AC/DC disconnect switches, ensuring both safety and convenience during operation and maintenance.
How It Works
The Chint Power 100kW inverter converts DC power from solar arrays into usable AC power for utilities. It operates efficiently through its inverter mechanism, while smart-grid features help to balance the power load and ensure compliance with various grid requirements.
Inverter Mechanism
This component converts solar-generated DC power into AC, ready for use by the power grid, maximizing energy input with its high-efficiency mechanism.
Smart-Grid Features
These features provide grid support and stability by adjusting operation dynamically in response to grid conditions and demands.
Connectivity and Monitoring
The inverter offers comprehensive monitoring solutions with Modbus RS485 and SunSpec integration, allowing for remote diagnostics and firmware updates through CPS FlexOM.
Specifications
| Max. DC Input Voltage | 1500 Vdc |
| Operating DC Voltage Range | 750-1450 Vdc |
| MPPT Voltage Range | 760-1300 Vdc |
| Max. AC Output Power | 100 kW |
| Rated Output Voltage | 480 Vac |
| Output Voltage Range | 423-528 Vac |
| Max. AC Output Current | 120.3 A / 126.7 A |
| Max. Efficiency | 98.9% |
| Enclosure Protection Degree | NEMA Type 4X |
| Operating Temperature Range | -22°F to +140°F / -30°C to +60°C |
| Certifications | UL 1741, CSA-22.2, IEEE 1547-2018 |
